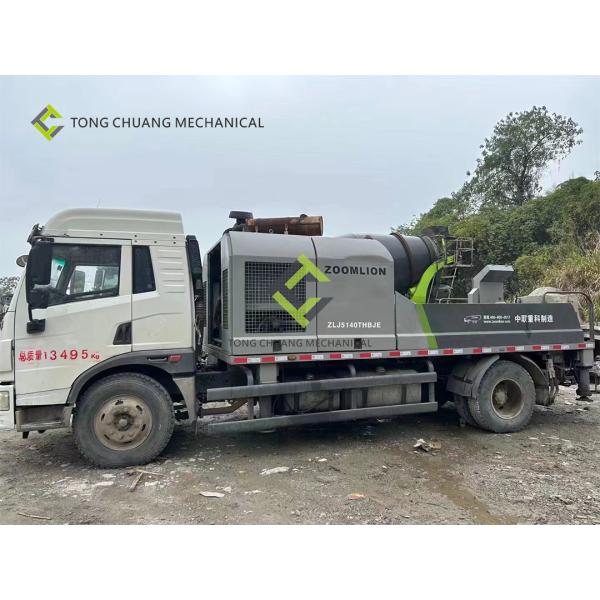

| zoomlion used truck mounted line pumps parameter configuration |
| Conventional parameters: |
| unit type | ZLJ5140THBJE-10018R | Model abbreviation | 5140 |
| Vehicle parameters: |
| Vehicle Weight (kg) | 13800 | Overall dimension (length, width and height) (mm) | 9100X2450X3140 |
| dynamical system: |
| power rating (kW) | 186 | engine type | BF6M1013-25T3R/1 |
| Pump system parameters: |
| Max Output Quantity(Low / High Pressure) (m³ / h) | 100/55 | Max Output Pressure(Low / High Pressure)(Mpa) | 10/18 |
| Theoretical pumping times (low / high pressure) (times / min) | 25/14 | Concrete cylinder cylinder diameter stroke (mm) | 200x1650 |
| bucket capacity (m³) | 0.6 | Feed height (mm) | 1500 |
| Chassis parameters: |
| Chassis brand | FAW liberation | Chassis model | CA1167PK2L2BESA80 |
| engine type | CA4DLD-18E6 | Engine power (kW) | 139 |
| engine displacement (L) | 4.76 | Maximum speed (km/h) | 89 |
| wheel base (mm) | 4950 | Fuel tank volume (L) | 300 |
Product features and advantages:
1:Dongfeng Tianjin chassis is equipped with Dongfeng Cummins engine, which is mature, reliable and powerful. The cab is flat with a sleeper. The interior is luxurious and equipped with air conditioning, which has a very comfortable driving feeling; Excellent performance, economy and durability. The cab is equipped with panoramic curved glass windscreen, multi-function seats, luxurious interior and air conditioning. The humanized design also makes driving very comfortable.Product features and advantages: Dongfeng Tianjin chassis is equipped with Dongfeng Cummins engine, which is mature, reliable and powerful. The cab is flat with a sleeper. The interior is luxurious and equipped with air conditioning, and has a very comfortable driving feeling; Excellent performance, economy and durability. The cab is equipped with pano+J246ramic curved glass windscreen, multi-function seats, luxurious interior, and air conditioning. The humanized design also makes driving very comfortable.
2:Adaptive power change technology (APD) is the best match. The lowest fuel consumption in the industry is automatic matching power mode according to pumping conditions. The engine always works in the economic fuel consumption area, saving 15% fuel compared with other manufacturers.
3:The industry's first digital electronic control system for line pumps.
4:The whole vehicle realizes digital management, intelligently adjusts the pumping stroke according to the load change during pumping, greatly improving the pumping suction and pumping efficiency; The pump reversing displacement is automatically adjusted to reduce pumping impact, reduce vehicle jitter and extend the using life of structural parts.
